Description

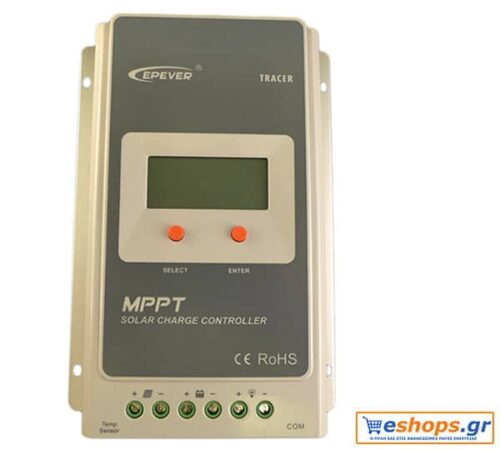

Ρυθμιστής φόρτισης Mppt 2210A 20A 520 watt ΜΑΧ Φ/Β πάνελ 24V με ψηφιακό display ( οθόνη ελέγχου)
Features:
• Advanced MPPT technology
• High tracking efficiency no less than 99.5%
• Peak conversion efficiency of 98%
• Ultra-fast tracking speed
• Accurately recognizing and tracking of multiple power point
• Multi-function LCD displays system information intuitively
• User programmable for battery types, load control etc.
• 3-Stage charge with PWM output
• Common positive grounding design
• RS485 port with industrial standard MODBUS open architecture
• Fully programmable function via PC software or remote meter
Electronic protections:
• PV reverse polarity protection
• PV short circuit protection
• PV over current alarm protection
• Battery overcharge protection
• Battery over discharge protection
• Battery reverse polarity protection
• Load short circuit protection
• Load overload protection
• Controller overheating protection
|
Model |
Tracer1210A |
Tracer2210A |
Tracer3210A |
Tracer4210A |
|
Nominal system voltage |
12/24V auto work |
|||
|
Rated battery current |
10A |
20A |
30A |
40A |
|
Rated load current |
10A |
20A |
30A |
40A |
|
Max. PV open circuit voltage |
100V |
|||
|
Max. battery voltage |
32V |
|||
|
Max. PV input power |
130W (12V) |
260W (12V) |
390W (12V) |
520W (12V) |
|
260W (24V) |
520W (24V) |
780W (24V) |
1040W (24V) |
|
|
Equalize charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|||
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|||
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V |
|||
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V |
|||
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V |
|||
|
Self-consumption |
≤20mA(12V) ≤16mA(24V) |
|||
|
Grounding |
Common positive |
|||
|
Temp. compensation |
-3mV/℃/2V |
|||
|
Communication Port |
RS485 / RJ45 interface |
|||
|
Working temperature |
-25℃～+45℃ |
|||
|
Storage temperature |
-35℃～+80℃ |
|||
|
Humidity |
≤95% N.C. |
|||
|
Enclosure |
IP30 |
|||
|
Overall dimension |
172x139x44mm |
172x139x44mm |
228x164x55mm |
252x180x63mm |
|
Terminal |
4mm2 |
10mm2 |
10mm2 |
10mm2 |
|
Net weight |
0.6kg |
1.1kg |
1.2kg |
1.9kg |
